Display the version history of Dataverse records in Power Apps
Apr 3, 2025 • 3 • 624
Table of contents
In SharePoint users are used to see version history of files and items. In Dataverse this isn’t there by default. In a Model Driven app the audit history is visible as related table on the form, this blog describes how to make it possible to make this available in a Canvas App just like we are used in SharePoint.

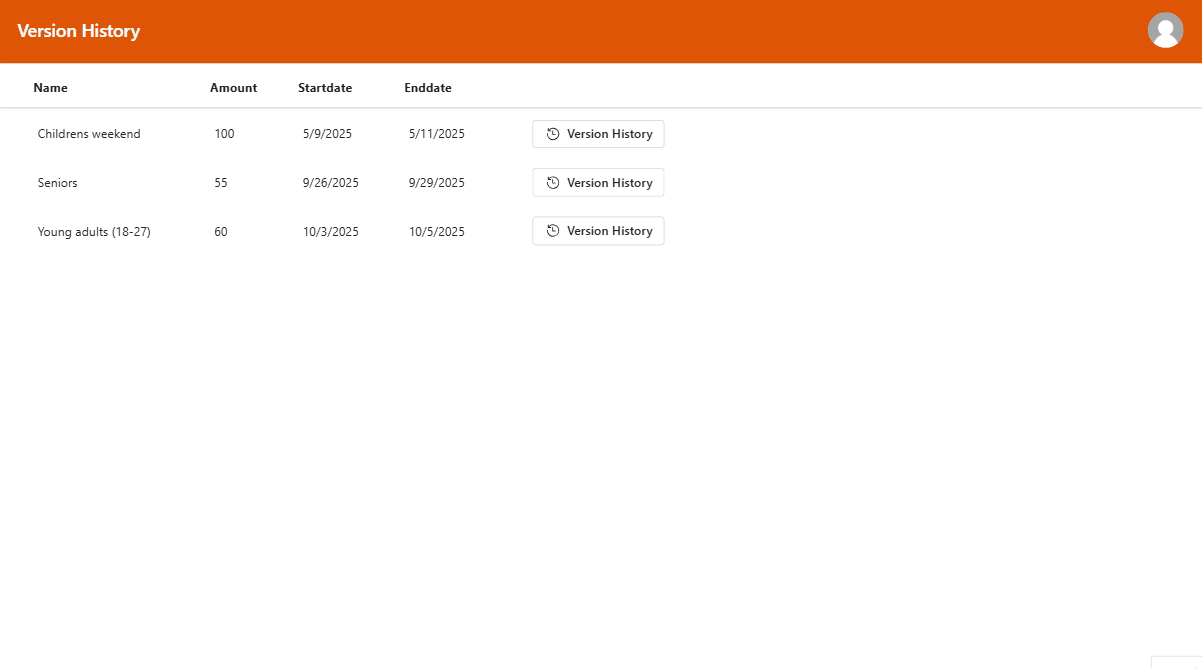

Endresult
The endresult on which a user can select an item and the flow will retrieve the version history data.
Activating audit

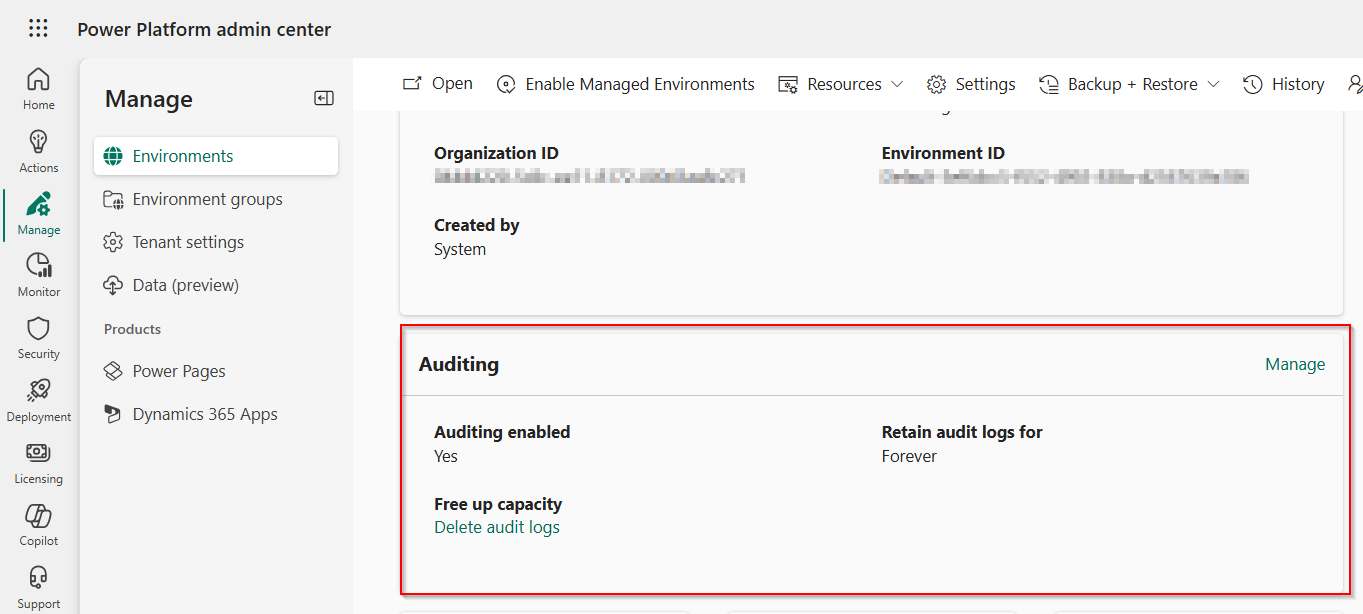

Activating Dataverse auditing it’s possible to activate on an environment.

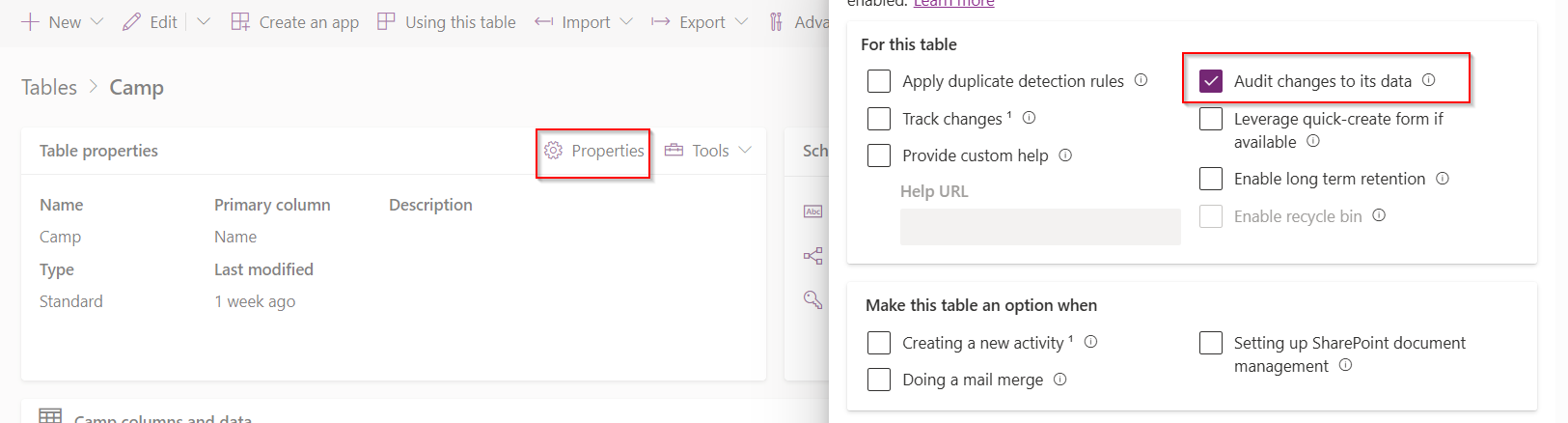

On table level activate the audit changed to its data:
Power Automate

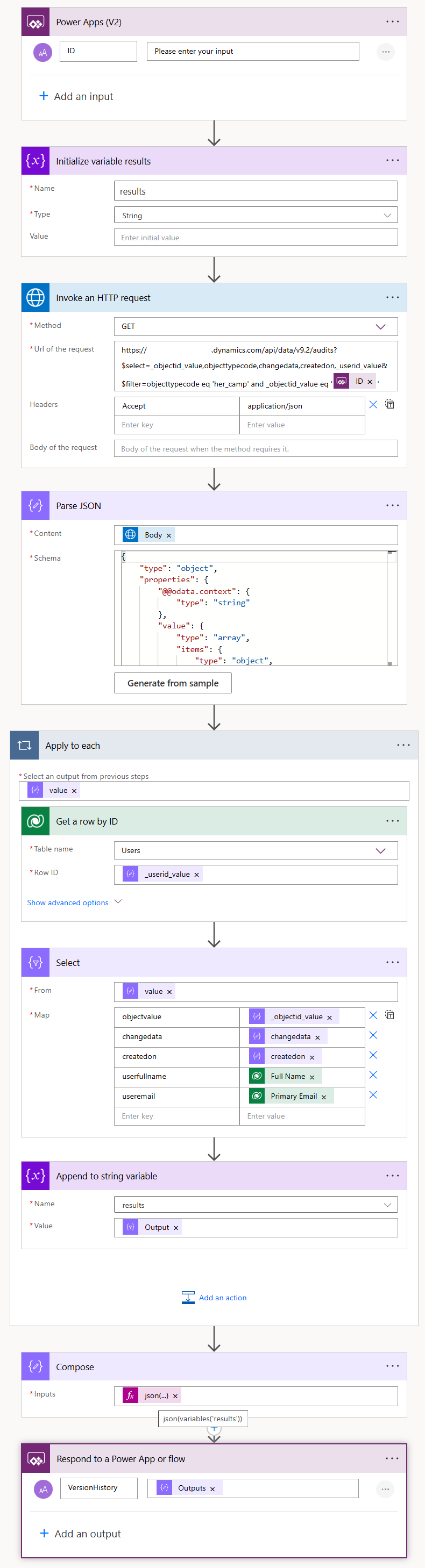

The button needs to trigger a flow to retrieve the versions of the record.
The HTTP request to get the audit details per record: replace the organization url and table name matching with your own scenario. The tablename needs to be the logical name.
https://<<organisation>>.crm4.dynamics.com/api/data/v9.2/audits?$select=_objectid_value,objecttypecode,changedata,createdon,_userid_value&$filter=objecttypecode eq '<<tablename>>' and _objectid_value eq '@{triggerBody()['text']}'
The outcome doesn’t contain the name of the user who made the change, so therefor some extra steps are needed.
App set up
The button used to retrieve the version history of the selected item contains this PowerFx formula. It triggers the flow to fetch data, organizes it into a structured collection, and then generates another collection with row numbers to enable version sorting.
UpdateContext({varshowSpinner: true});
Clear(colVersionHistory);
Clear(colVersionHistoryNo);
Set(varversionhistoryinfo, 'Personal-getversionhistory'.Run(ThisItem.Camp).versionhistory);
If(Not(IsBlank(varversionhistoryinfo)),
Collect(
colVersionHistory,
ForAll(
Table(ParseJSON(varversionhistoryinfo)) As _dataRows,
{
objectvalue: Text(_dataRows.Value.objectvalue),
changedata: ForAll(
Table(ParseJSON(Text(_dataRows.Value.changedata)).changedAttributes) As changed,
{
oldValue: changed.Value.oldValue,
newValue: changed.Value.newValue,
logicalName: changed.Value.logicalName
}
),
createdon: DateTimeValue(_dataRows.Value.createdon),
userfullname: Text(_dataRows.Value.userfullname),
useremail: Text(_dataRows.Value.useremail)
}
)
));
// Generate row number code
Collect(
colVersionHistoryNo,
ForAll(
Sequence(CountRows(colVersionHistory)),
Patch(
Last(FirstN(colVersionHistory, Value)),
{RowNumber: Value}
)
)
);
UpdateContext({varShowVersionHistory: true});
UpdateContext({varshowSpinner: false});

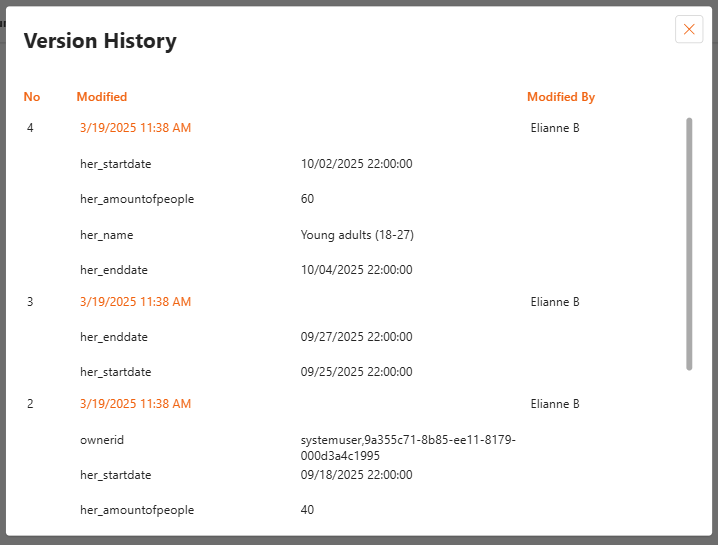

The yaml code for the Version History popup:
- conVersionHistory:
Control: GroupContainer@1.3.0
Variant: ManualLayout
Properties:
Fill: =RGBA(255, 255, 255, 1)
Height: |+
=600
Visible: =varShowVersionHistory
Width: =800
X: =(Parent.Width- Self.Width) /2
Y: =(Parent.Height - Self.Height)/2
Children:
- galVersions:
Control: Gallery@2.15.0
Variant: BrowseLayout_Flexible_SocialFeed_ver5.0
Properties:
Height: =galChangedData.Height + (CountRows(Self.AllItems) * 80)
Items: =Sort(colVersionHistoryNo,RowNumber,SortOrder.Descending)
TemplateSize: =galChangedData.Height + 60
Width: =Parent.Width - Self.X - Self.X
X: =txtTitle.X
Y: =txtNo.Y + txtNo.Height
Children:
- galChangedData:
Control: Gallery@2.15.0
Variant: BrowseLayout_Vertical_TwoTextOneImageVariant_ver5.0
Properties:
Height: =CountRows(Self.AllItems) * 40
Items: =ThisItem.changedata
TabIndex: =0
TemplateSize: =40
Width: =txtModifiedValue.Width
X: =txtModifiedValue.X
Y: =txtModifiedValue.Y + txtModifiedValue.Height
Children:
- txtChangedValue:
Control: Text@0.0.50
Properties:
Text: =ThisItem.newValue
Width: =Parent.Width - txtlogicalName.Width
X: =txtlogicalName.X + txtlogicalName.Width
Y: =txtlogicalName.Y
- txtlogicalName:
Control: Text@0.0.50
Properties:
Text: =ThisItem.logicalName
Width: =Parent.Width/2
Y: =8
- txtModifiedByValue:
Control: Text@0.0.50
Properties:
Text: =ThisItem.userfullname
Width: =txtModifiedBy.Width
X: =txtModifiedValue.X + txtModifiedValue.Width + 10
Y: =txtNoValue.Y
- txtModifiedValue:
Control: Text@0.0.50
Properties:
FontColor: =RGBA(240, 98, 15, 1)
Text: =ThisItem.createdon
Width: =txtModified.Width
X: =txtNoValue.X + txtNoValue.Width + 10
Y: =txtNoValue.Y
- txtNoValue:
Control: Text@0.0.50
Properties:
Text: =ThisItem.RowNumber
Width: =txtNo.Width
- txtNoVersions:
Control: Text@0.0.50
Properties:
Font: =
Text: ="No extra versions available"
Visible: =If(CountRows(colVersionHistory) = 0, true,false)
Width: =Parent.Width - Self.X - Self.X
X: =txtNo.X
Y: =txtNo.Y + txtNo.Height
- txtModifiedBy:
Control: Text@0.0.50
Properties:
FontColor: =RGBA(240, 98, 15, 1)
Text: ="Modified By"
Weight: ='TextCanvas.Weight'.Semibold
X: =txtModified.X + txtModified.Width + 10
Y: =txtNo.Y
- txtModified:
Control: Text@0.0.50
Properties:
FontColor: =RGBA(240, 98, 15, 1)
Text: ="Modified"
Weight: ='TextCanvas.Weight'.Semibold
Width: =500
X: =txtNo.X + txtNo.Width + 10
Y: =txtNo.Y
- txtNo:
Control: Text@0.0.50
Properties:
FontColor: =RGBA(240, 98, 15, 1)
Text: ="No"
Weight: ='TextCanvas.Weight'.Semibold
Width: =50
X: =txtTitle.X
Y: =txtTitle.Y + txtTitle.Height + 20
- txtTitle:
Control: Text@0.0.50
Properties:
Height: =52
Size: =24
Text: ="Version History"
Weight: ='TextCanvas.Weight'.Bold
Width: =336
X: =20
Y: =20
- btnClose:
Control: Button@0.0.44
Properties:
Appearance: ='ButtonCanvas.Appearance'.Secondary
FontColor: =RGBA(240, 98, 15, 1)
Icon: ="Dismiss"
Layout: ='ButtonCanvas.Layout'.IconOnly
OnSelect: =UpdateContext({varShowVersionHistory:false})
Width: =32
X: =Parent.Width - Self.Width - 10
Y: =10
Summarize
This way you can have the same version history layout and look-and-feel in a Power App based on Dataverse data like there is by default in SharePoint.
