Power Pages: visual message indicator

Nov 24, 2024 • 2 • 270

Table of contents

End result
- Datamodel
Content snippet
- Add content snippet to the header
Tips

End result

The end result is an envelop icon in which a counter displays the number of messages for the current logged in contact.

content snippet

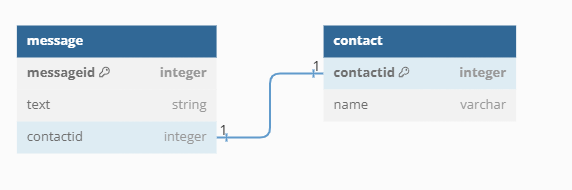

Datamodel

Simplified view of the datamodel, just to support the understanding of the technical setup.

content snippet

Content snippet

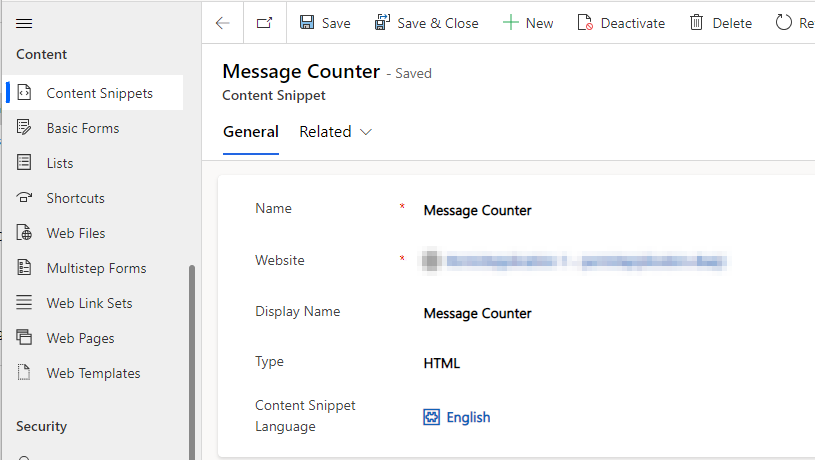

To accomplish this, start by creating an HTML content snippet. This snippet will serve as the foundation for counting the number of messages and displaying the envelop icon.

content snippet

In this scenario the name of the snippet is: Message Counter.

<!-- Count Messages for current logged in user -->
{% fetchxml querymessages %}
<fetch version="1.0" mapping="logical" aggregate="true">
    <entity name="cr4c5_message">

    <attribute name="cr4c5_messageid" aggregate="count" alias="messagescount"/>
    <filter>
        <condition attribute="cr4c5_to" operator="eq" value="{{user.id}}" />
    </filter>

</entity>
</fetch>
{% endfetchxml %}

{% for result in querymessages.results.entities %}
    {% assign messagescount = result.messagescount %}
{% endfor %}

<!--The envelop icon in svg format as a link to details page -->
<a href="~/Messages">

<svg height="40px" width="40px" version="1.1" id="_x32_" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink"
	 viewBox="0 0 512 512"  xml:space="preserve">
<style type="text/css">
	.st0{fill:#fff;}
    .st1{fill:#ff0000;
</style>
<g>
	<path class="st0" d="M395.914,280.909v110.243L293.305,290.163l42.018-35.667c-9.729-7.633-18.24-16.686-25.196-26.818
		l-87.074,73.902c-1.69,1.418-4.19,2.228-6.891,2.228c-2.635,0-5.135-0.81-6.822-2.228L49.785,166.209h237.846
		c-0.338-3.783-0.541-7.635-0.541-11.553c0-8.308,0.812-16.414,2.297-24.318H0v324.244h432.324v-173.47
		c-5.742,0.81-11.617,1.216-17.563,1.216C408.344,282.328,402.062,281.855,395.914,280.909z M36.41,203.091l43.908,37.288
		l58.701,49.784L36.41,391.152V203.091z M62.891,418.712L168.27,314.955l13.779,11.686c9.188,7.836,21.279,12.092,34.113,12.092
		c12.834,0,24.994-4.256,34.113-12.024l13.782-11.754l105.377,103.757H62.891z"/>

	<path class="st1" d="M414.744,57.418c-53.713,0-97.256,43.543-97.256,97.256s43.543,97.256,97.256,97.256
		c53.717,0,97.256-43.543,97.256-97.256S468.461,57.418,414.744,57.418z 29.078-25.261h26.068V211.504z"/>
</g>
<g>
     <text x="370" y="200" style="fill: #ffffff;font-size:130px;font-weight:bold;">{{messagescount}}</text>
</g>
</svg>

</a>

Add content snippet to the header

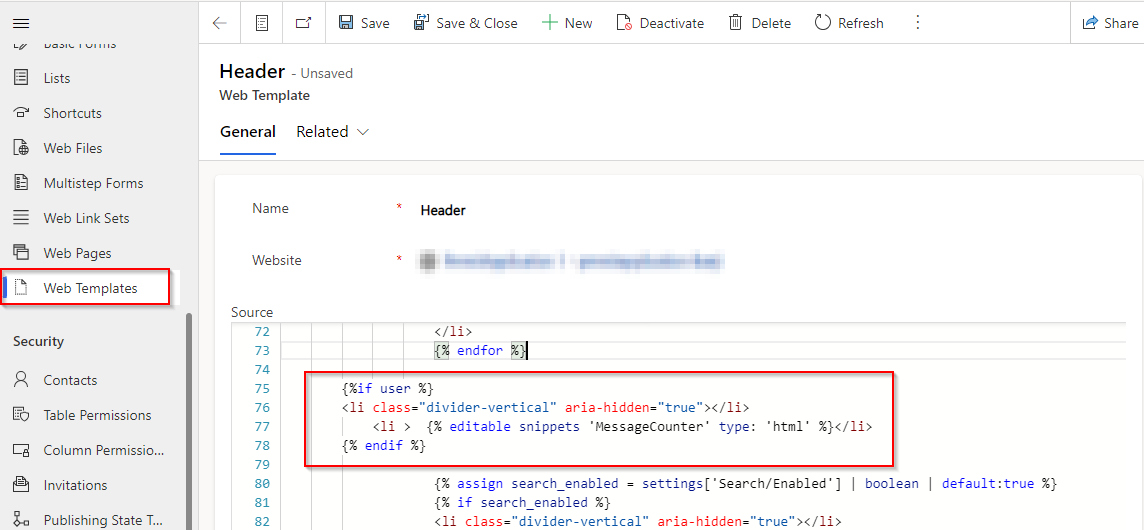

Go to Web Templates and select Header. Add html to the source code:

page snippet

This is the html, which is only displayed if the user is logged in:

{%if user %}
<li class="divider-vertical" aria-hidden="true"></li>
    <li >  {% editable snippets 'MessagesCounter' type: 'html' %}</li>
{% endif %}

Just sync and test! The envelop will be displayed and the user is informed about the number of messages!

Tips

Use FetchXml Test in the XrmToolBox to test your FetchXml queries.
