SharePoint column formatting: visualize status cards
Aug 7, 2024 • 14 • 2850
Table of contents
A visually appealing presentation helps in swiftly and clearly grasping information at a glance. Users can capture a lot of information in SharePoint, where you can stick to just capturing it, but by taking a moment to consider the possibilities of view, row and column formatting, users can realize significant benefits.
One common data element frequently recorded in a column is the “status”. By using the standard column formatting nowadays you can easily assign a different color to each status:

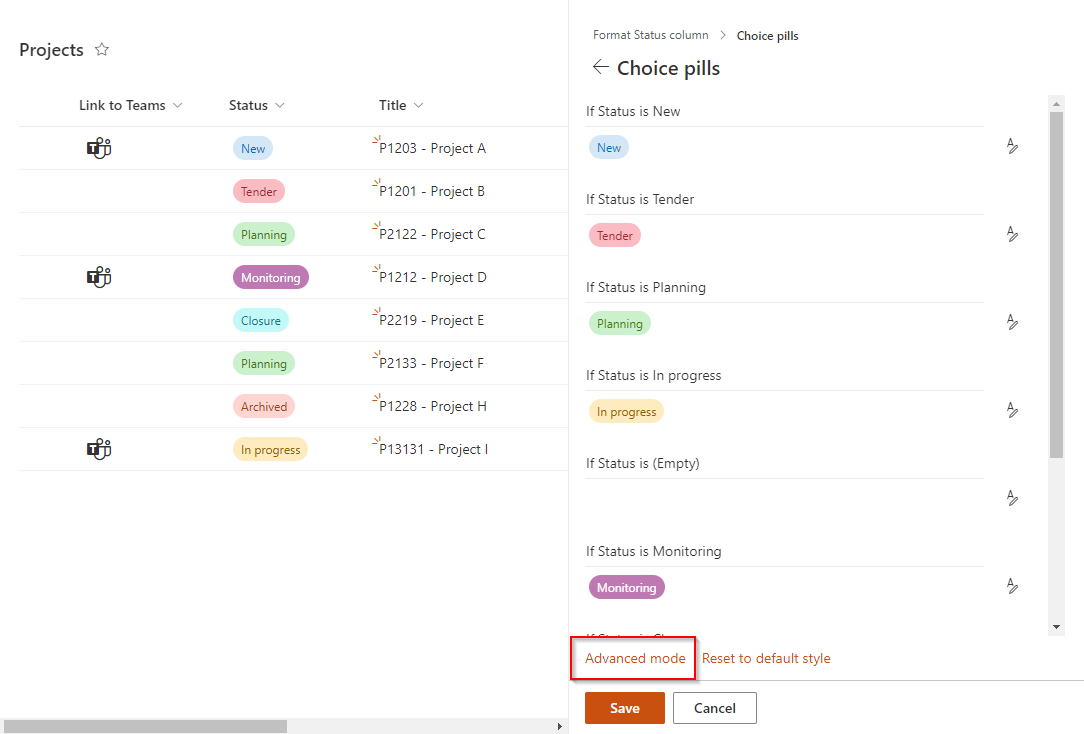

Advanced mode
By switching to advanced mode, the possibilities are endless. The first option I added is an icon per state, so that in addition to the color usage, the icon also provides insight. This can be done by working within the various data with if-statements that can change per status, both for the icon and the color the if-statements are created.

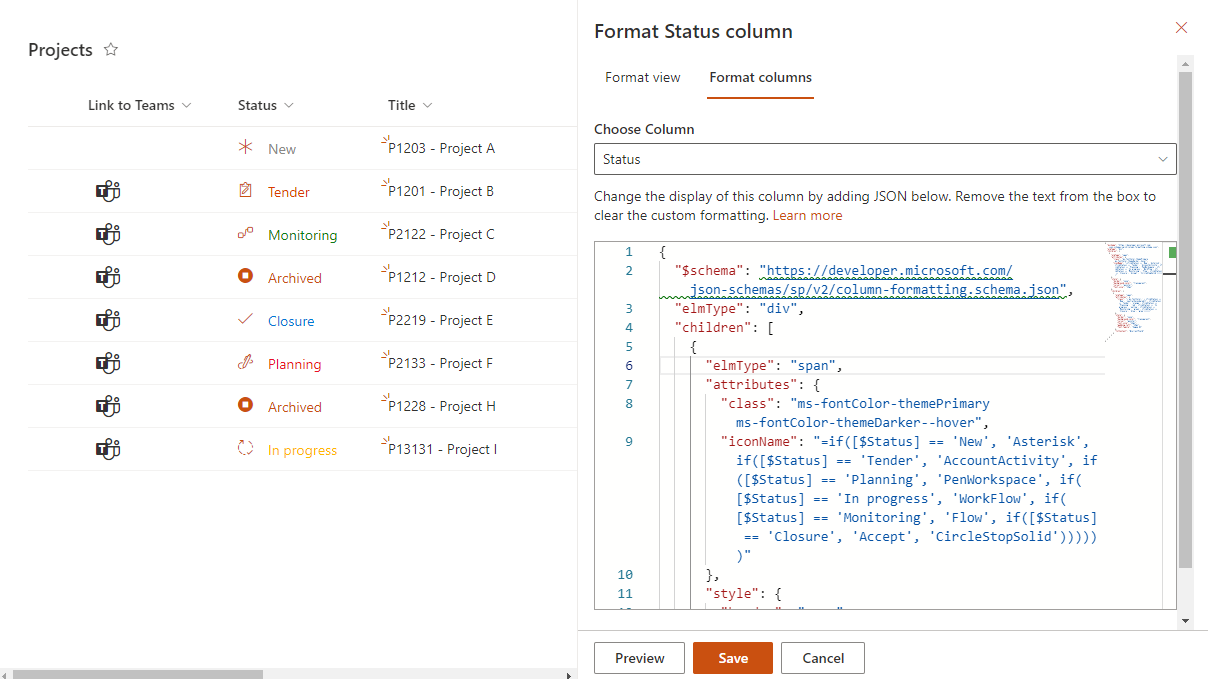

One of the initial options introduced is the inclusion of an icon for each state. In addition to utilizing colors, these icons offer further insight into the status. This is achieved by manipulating the data using if-statements tailored to each status, enabling dynamic changes in both the icon and color based on the specified conditions.
The json used to get this view:
{
"$schema": "https://developer.microsoft.com/json-schemas/sp/v2/column-formatting.schema.json",
"elmType": "div",
"children": [
{
"elmType": "span",
"attributes": {
"class": "ms-fontColor-themePrimary ms-fontColor-themeDarker--hover",
"iconName": "=if([$Status] == 'New', 'Asterisk', if([$Status] == 'Tender', 'AccountActivity', if([$Status] == 'Planning', 'PenWorkspace', if([$Status] == 'In progress', 'WorkFlow', if([$Status] == 'Monitoring', 'Flow', if([$Status] == 'Closure', 'Accept', 'CircleStopSolid'))))))"
},
"style": {
"border": "none",
"background-color": "transparent",
"cursor": "pointer",
"font-size": "15px"
},
"children": [
{
"elmType": "span",
"attributes": {
"class": "='ms-fontColor-' + if([$Status] == 'New', 'neutralSecondaryAlt', if([$Status] == 'Tender', 'orange', if([$Status] == 'Planning', 'red', if([$Status] == 'In progress', 'yellow', if([$Status] == 'Monitoring', 'green', if([$Status] == 'Closure', 'blue', 'grey'))))))"
},
"style": {
"border": "none",
"background-color": "transparent",
"cursor": "pointer",
"font-size": "14px",
"padding-left": "15px",
"font-family": "Segoe UI"
},
"txtContent": "@currentField"
}
]
}
]
}

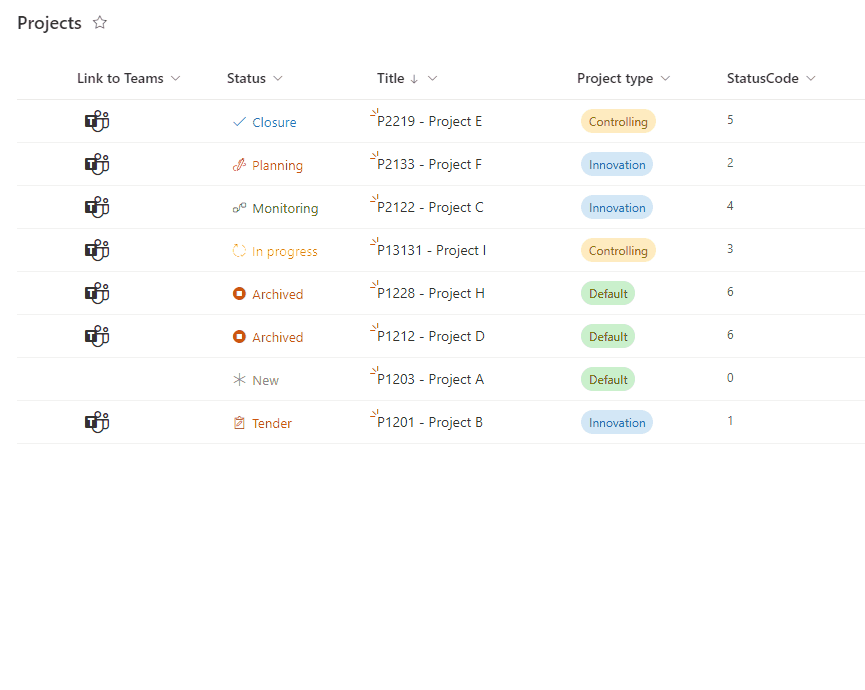

If you ask me, this already makes the status column clearer.
Status cards

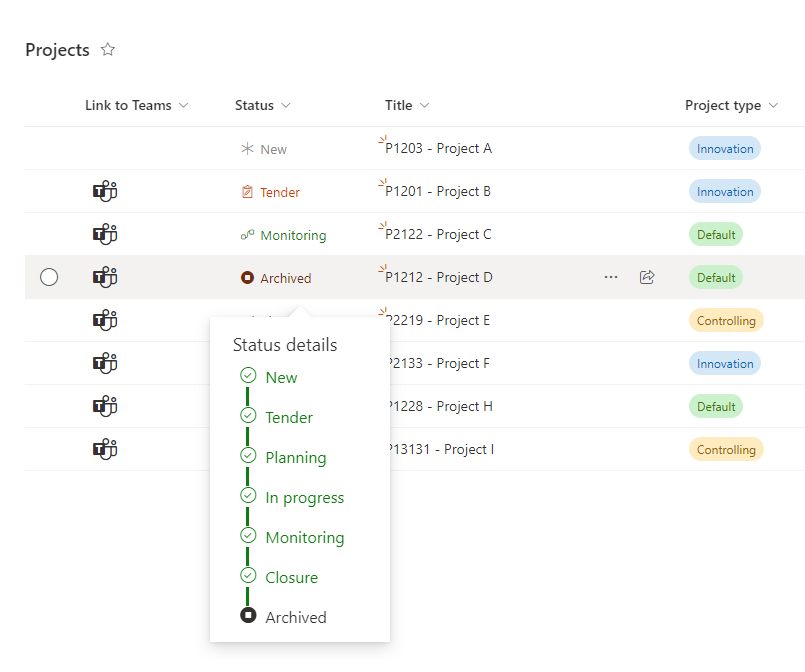

To get to the current status, we go a bit further. Hovering over the current status opens a card with the process flow.
The json used to get this view:
{
"$schema": "https://developer.microsoft.com/json-schemas/sp/v2/column-formatting.schema.json",
"elmType": "button",
"customRowAction": {},
"attributes": {
"class": "ms-fontColor-themePrimary ms-fontColor-themeDarker--hover"
},
"style": {
"border": "none",
"background-color": "transparent",
"cursor": "pointer"
},
"children": [
{
"elmType": "span",
"attributes": {
"iconName": "=if([$Status]=='New', 'Asterisk', if([$Status]=='Tender','AccountActivity', if([$Status]=='Planning','PenWorkspace', if([$Status]=='In progress','WorkFlow', if([$Status]=='Monitoring','Flow', if([$Status]=='Closure','Accept','CircleStopSolid')",
"class": "='ms-fontColor-' + if([$Status] == 'New', 'neutralSecondaryAlt', if([$Status] == 'Tender', 'orange',if([$Status] == 'Planning', 'red',if([$Status] == 'In progress', 'yellow', if([$Status] == 'Monitoring', 'green',if([$Status] == 'Closure', 'blue','grey')))"
},
"style": {
"padding-right": "6px"
}
},
{
"elmType": "span",
"attributes": {
"class": "='ms-fontColor-' + if([$Status] == 'New', 'neutralSecondaryAlt', if([$Status] == 'Tender', 'orange',if([$Status] == 'Planning', 'red',if([$Status] == 'In progress', 'yellow', if([$Status] == 'Monitoring', 'green',if([$Status] == 'Closure', 'blue','grey')))"
},
"txtContent": "@currentField"
}
],
"customCardProps": {
"formatter": {
"elmType": "div",
"children": [
{
"elmType": "div",
"children": [
{
"elmType": "div",
"style": {
"padding": "15px 45px 15px 15px"
},
"children": [
{
"elmType": "div",
"children": [
{
"elmType": "div",
"style": {
"font-size": "18px",
"text-align": "center",
"margin-bottom": "10px"
},
"txtContent": "Status details"
}
]
},
{
"elmType": "div",
"children": [
{
"elmType": "span",
"style": {
"font-size": "16px",
"padding-left": "15px"
},
"txtContent": " ",
"attributes": {
"iconName": "=if([$Status]=='New', 'Asterisk', if([$StatusCode] > 0, 'StatusCircleCheckmark', 'CircleRing')",
"class": "='ms-fontColor-' + if([$Status] == 'New', 'grey', if([$StatusCode] > 0, 'green', 'neutralSecondaryAlt'))"
}
},
{
"elmType": "span",
"style": {
"font-size": "16px",
"margin-left": "-16px"
},
"txtContent": " ",
"attributes": {
"iconName": "=if([$Status]=='New', 'Asterisk', 'CircleRing'",
"class": "='ms-fontColor-' + if([$Status] == 'New', 'grey', if([$StatusCode] > 0, 'green', 'neutralSecondaryAlt'))"
}
},
{
"elmType": "span",
"style": {
"font-size": "16px",
"padding-left": "9px"
},
"txtContent": "New",
"attributes": {
"class": "='ms-fontColor-' + if([$Status] == 'New', 'grey', if([$StatusCode] > 0, 'green', 'neutralSecondaryAlt'))"
}
}
]
},
{
"elmType": "div",
"children": [
{
"elmType": "span",
"style": {
"border-left-style": "solid",
"border-left-color": "='ms-borderColor-' + if([$Status] > 0,'green','neutralSecondaryAlt')",
"margin-left": "21px"
},
"attributes": {
"class": "='ms-fontColor-' + if([$StatusCode] > 0,'green','neutralSecondaryAlt')"
}
}
]
},
{
"elmType": "div",
"children": [
{
"elmType": "span",
"style": {
"font-size": "16px",
"padding-left": "15px"
},
"txtContent": " ",
"attributes": {
"iconName": "=if([$Status]=='Tender', 'AccountActivity', if([$StatusCode] > 1, 'StatusCircleCheckmark', 'CircleRing')",
"class": "='ms-fontColor-' + if([$Status] == 'Tender', 'orange', if([$StatusCode] > 0, 'green', 'neutralSecondaryAlt'))"
}
},
{
"elmType": "span",
"style": {
"font-size": "16px",
"margin-left": "-16px"
},
"txtContent": " ",
"attributes": {
"iconName": "=if([$Status]=='Tender', 'AccountActivity', 'CircleRing'",
"class": "='ms-fontColor-' + if([$Status] == 'Tender', 'orange', if([$StatusCode] > 0, 'green', 'neutralSecondaryAlt'))"
}
},
{
"elmType": "span",
"style": {
"font-size": "16px",
"padding-left": "9px"
},
"txtContent": "Tender",
"attributes": {
"class": "='ms-fontColor-' + if([$Status] == 'Tender', 'orange', if([$StatusCode] > 0, 'green', 'neutralSecondaryAlt'))"
}
}
]
},
{
"elmType": "div",
"children": [
{
"elmType": "span",
"style": {
"border-left-style": "solid",
"border-left-color": "='ms-borderColor-' + if([$Status] > 1 ,'green','neutralSecondaryAlt')",
"margin-left": "21px"
},
"attributes": {
"class": "='ms-fontColor-' + if([$StatusCode] > 1,'green','neutralSecondaryAlt')"
}
}
]
},
{
"elmType": "div",
"children": [
{
"elmType": "span",
"style": {
"font-size": "16px",
"padding-left": "15px"
},
"txtContent": " ",
"attributes": {
"iconName": "=if([$Status]=='Planning', 'PenWorkspace', if([$StatusCode] > 2, 'StatusCircleCheckmark', 'CircleRing')",
"class": "='ms-fontColor-' + if([$Status] == 'Planning', 'red', if([$StatusCode] > 2, 'green', 'neutralSecondaryAlt'))"
}
},
{
"elmType": "span",
"style": {
"font-size": "16px",
"margin-left": "-16px"
},
"txtContent": " ",
"attributes": {
"iconName": "=if([$Status]=='Planning', 'PenWorkspace', 'CircleRing'",
"class": "='ms-fontColor-' + if([$Status] == 'Planning', 'red', if([$StatusCode] > 2, 'green', 'neutralSecondaryAlt'))"
}
},
{
"elmType": "span",
"style": {
"font-size": "16px",
"padding-left": "9px"
},
"txtContent": "Planning",
"attributes": {
"class": "='ms-fontColor-' + if([$Status] == 'Planning', 'red', if([$StatusCode] > 2, 'green', 'neutralSecondaryAlt'))"
}
}
]
},
{
"elmType": "div",
"children": [
{
"elmType": "span",
"style": {
"border-left-style": "solid",
"border-left-color": "='ms-borderColor-' + if([$Status] > 2 ,'green','neutralSecondaryAlt')",
"margin-left": "21px"
},
"attributes": {
"class": "='ms-fontColor-' + if([$StatusCode] > 2,'green','neutralSecondaryAlt')"
}
}
]
},
{
"elmType": "div",
"children": [
{
"elmType": "span",
"style": {
"font-size": "16px",
"padding-left": "15px"
},
"txtContent": " ",
"attributes": {
"iconName": "=if([$Status]=='In progress', 'Workflow', if([$StatusCode] > 3, 'StatusCircleCheckmark', 'CircleRing')",
"class": "='ms-fontColor-' + if([$Status] == 'In progress', 'yellow', if([$StatusCode] > 3, 'green', 'neutralSecondaryAlt'))"
}
},
{
"elmType": "span",
"style": {
"font-size": "16px",
"margin-left": "-16px"
},
"txtContent": " ",
"attributes": {
"iconName": "=if([$Status]=='In progress', 'Workflow', 'CircleRing'",
"class": "='ms-fontColor-' + if([$Status] == 'In progress', 'yellow', if([$StatusCode] > 3, 'green', 'neutralSecondaryAlt'))"
}
},
{
"elmType": "span",
"style": {
"font-size": "16px",
"padding-left": "9px"
},
"txtContent": "In progress",
"attributes": {
"class": "='ms-fontColor-' + if([$Status] == 'In progress', 'yellow', if([$StatusCode] > 3, 'green', 'neutralSecondaryAlt'))"
}
}
]
},
{
"elmType": "div",
"children": [
{
"elmType": "span",
"style": {
"border-left-style": "solid",
"border-left-color": "='ms-borderColor-' + if([$Status] > 3 ,'green','neutralSecondaryAlt')",
"margin-left": "21px"
},
"attributes": {
"class": "='ms-fontColor-' + if([$StatusCode] > 3,'green','neutralSecondaryAlt')"
}
}
]
},
{
"elmType": "div",
"children": [
{
"elmType": "span",
"style": {
"font-size": "16px",
"padding-left": "15px"
},
"txtContent": " ",
"attributes": {
"iconName": "=if([$Status]=='Monitoring', 'Flow', if([$StatusCode] > 4, 'StatusCircleCheckmark', 'CircleRing')",
"class": "='ms-fontColor-' + if([$Status] == 'Monitoring', 'green', if([$StatusCode] > 4, 'green', 'neutralSecondaryAlt'))"
}
},
{
"elmType": "span",
"style": {
"font-size": "16px",
"margin-left": "-16px"
},
"txtContent": " ",
"attributes": {
"iconName": "=if([$Status]=='Monitoring', 'Flow', 'CircleRing'",
"class": "='ms-fontColor-' + if([$Status] == 'Monitoring', 'green', if([$StatusCode] > 4, 'green', 'neutralSecondaryAlt'))"
}
},
{
"elmType": "span",
"style": {
"font-size": "16px",
"padding-left": "9px"
},
"txtContent": "Monitoring",
"attributes": {
"class": "='ms-fontColor-' + if([$Status] == 'Monitoring', 'green', if([$StatusCode] > 4, 'green', 'neutralSecondaryAlt'))"
}
}
]
},
{
"elmType": "div",
"children": [
{
"elmType": "span",
"style": {
"border-left-style": "solid",
"border-left-color": "='ms-borderColor-' + if([$Status] > 4 ,'green','neutralSecondaryAlt')",
"margin-left": "21px"
},
"attributes": {
"class": "='ms-fontColor-' + if([$StatusCode] > 4,'green','neutralSecondaryAlt')"
}
}
]
},
{
"elmType": "div",
"children": [
{
"elmType": "span",
"style": {
"font-size": "16px",
"padding-left": "15px"
},
"txtContent": " ",
"attributes": {
"iconName": "=if([$Status]=='Closure', 'Accept', if([$StatusCode] > 5, 'StatusCircleCheckmark', 'CircleRing')",
"class": "='ms-fontColor-' + if([$Status] == 'Closure', 'blue', if([$StatusCode] > 5, 'green', 'neutralSecondaryAlt'))"
}
},
{
"elmType": "span",
"style": {
"font-size": "16px",
"margin-left": "-16px"
},
"txtContent": " ",
"attributes": {
"iconName": "=if([$Status]=='Closure', 'Accept', 'CircleRing'",
"class": "='ms-fontColor-' + if([$Status] == 'Closure', 'blue', if([$StatusCode] > 5, 'green', 'neutralSecondaryAlt'))"
}
},
{
"elmType": "span",
"style": {
"font-size": "16px",
"padding-left": "9px"
},
"txtContent": "Closure",
"attributes": {
"class": "='ms-fontColor-' + if([$Status] == 'Closure', 'blue', if([$StatusCode] > 5, 'green', 'neutralSecondaryAlt'))"
}
}
]
},
{
"elmType": "div",
"children": [
{
"elmType": "span",
"style": {
"border-left-style": "solid",
"border-left-color": "='ms-borderColor-' + if([$Status] > 5 ,'green','neutralSecondaryAlt')",
"margin-left": "21px"
},
"attributes": {
"class": "='ms-fontColor-' + if([$StatusCode] > 5,'green','neutralSecondaryAlt')"
}
}
]
},
{
"elmType": "div",
"children": [
{
"elmType": "span",
"style": {
"font-size": "16px",
"padding-left": "15px"
},
"txtContent": " ",
"attributes": {
"iconName": "=if([$Status]=='Archived', 'CircleStopSolid', if([$StatusCode] > 6, 'StatusCircleCheckmark', 'CircleRing')",
"class": "='ms-fontColor-' + if([$Status] == 'Archived', 'grey', if([$StatusCode] > 6, 'green', 'neutralSecondaryAlt'))"
}
},
{
"elmType": "span",
"style": {
"font-size": "16px",
"margin-left": "-16px"
},
"txtContent": " ",
"attributes": {
"iconName": "=if([$Status]=='Archived', 'CircleStopSolid', 'CircleRing'",
"class": "='ms-fontColor-' + if([$Status] == 'Archived', 'grey', if([$StatusCode] > 6, 'green', 'neutralSecondaryAlt'))"
}
},
{
"elmType": "span",
"style": {
"font-size": "16px",
"padding-left": "9px"
},
"txtContent": "Archived",
"attributes": {
"class": "='ms-fontColor-' + if([$Status] == 'Archived', 'grey', if([$StatusCode] > 6, 'green', 'neutralSecondaryAlt'))"
}
}
]
}
]
}
]
}
]
},
"openOnEvent": "hover",
"directionalHint": "bottomCenter",
"isBeakVisible": true
}
}
A StatusCode column has been added to define the order of the statuses to make it more clear in the JSON formatting.
Different process steps per project type

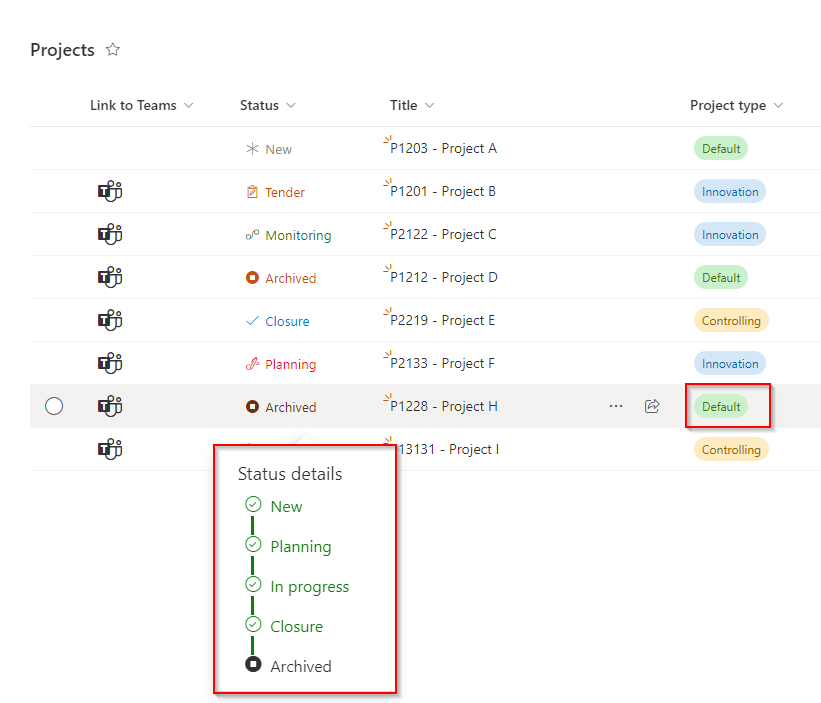

Until now, the assumption has been that each project type can have the same statuses. It is easy to imagine that this is by no means true in all cases. For a project type ‘innovation’ several statuses are possible compared to a project type ‘default’:
Default
Innovation

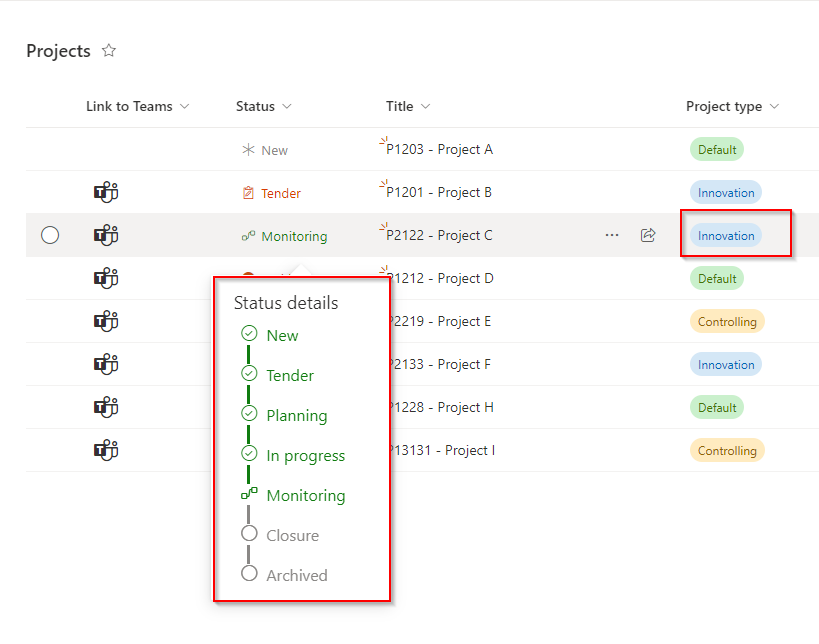

By setting visibility on the right elements, you can create different cards.
"style": {
"visibility": "=if([$Projecttype]=='Innovation', 'visible', 'hidden')",
"margin-top": "=if([$Projecttype]=='Innovation', '0', '-40px')"
}
Full JSON
{
"$schema": "https://developer.microsoft.com/json-schemas/sp/v2/column-formatting.schema.json",
"elmType": "button",
"customRowAction": {},
"attributes": {
"class": "ms-fontColor-themePrimary ms-fontColor-themeDarker--hover"
},
"style": {
"border": "none",
"background-color": "transparent",
"cursor": "pointer"
},
"children": [
{
"elmType": "span",
"attributes": {
"iconName": "=if([$Status]=='New', 'Asterisk', if([$Status]=='Tender','AccountActivity', if([$Status]=='Planning','PenWorkspace', if([$Status]=='In progress','WorkFlow', if([$Status]=='Monitoring','Flow', if([$Status]=='Closure','Accept','CircleStopSolid')",
"class": "='ms-fontColor-' + if([$Status] == 'New', 'neutralSecondaryAlt', if([$Status] == 'Tender', 'orange',if([$Status] == 'Planning', 'red',if([$Status] == 'In progress', 'yellow', if([$Status] == 'Monitoring', 'green',if([$Status] == 'Closure', 'blue','grey')))"
},
"style": {
"padding-right": "6px"
}
},
{
"elmType": "span",
"attributes": {
"class": "='ms-fontColor-' + if([$Status] == 'New', 'neutralSecondaryAlt', if([$Status] == 'Tender', 'orange',if([$Status] == 'Planning', 'red',if([$Status] == 'In progress', 'yellow', if([$Status] == 'Monitoring', 'green',if([$Status] == 'Closure', 'blue','grey')))"
},
"txtContent": "@currentField"
}
],
"customCardProps": {
"formatter": {
"elmType": "div",
"children": [
{
"elmType": "div",
"children": [
{
"elmType": "div",
"style": {
"padding": "15px 45px 15px 15px"
},
"children": [
{
"elmType": "div",
"children": [
{
"elmType": "div",
"style": {
"font-size": "18px",
"text-align": "center",
"margin-bottom": "10px"
},
"txtContent": "Status details"
}
]
},
{
"elmType": "div",
"children": [
{
"elmType": "span",
"style": {
"font-size": "16px",
"padding-left": "15px"
},
"txtContent": " ",
"attributes": {
"iconName": "=if([$Status]=='New', 'Asterisk', if([$StatusCode] > 0, 'StatusCircleCheckmark', 'CircleRing')",
"class": "='ms-fontColor-' + if([$Status] == 'New', 'grey', if([$StatusCode] > 0, 'green', 'neutralSecondaryAlt'))"
}
},
{
"elmType": "span",
"style": {
"font-size": "16px",
"margin-left": "-16px"
},
"txtContent": " ",
"attributes": {
"iconName": "=if([$Status]=='New', 'Asterisk', 'CircleRing'",
"class": "='ms-fontColor-' + if([$Status] == 'New', 'grey', if([$StatusCode] > 0, 'green', 'neutralSecondaryAlt'))"
}
},
{
"elmType": "span",
"style": {
"font-size": "16px",
"padding-left": "9px"
},
"txtContent": "New",
"attributes": {
"class": "='ms-fontColor-' + if([$Status] == 'New', 'grey', if([$StatusCode] > 0, 'green', 'neutralSecondaryAlt'))"
}
}
]
},
{
"elmType": "div",
"children": [
{
"elmType": "span",
"style": {
"border-left-style": "solid",
"border-left-color": "='ms-borderColor-' + if([$Status] > 0,'green','neutralSecondaryAlt')",
"margin-left": "21px"
},
"attributes": {
"class": "='ms-fontColor-' + if([$StatusCode] > 0,'green','neutralSecondaryAlt')"
}
}
]
},
{
"elmType": "div",
"style": {
"visibility": "=if([$Projecttype]=='Innovation', 'visible', 'hidden')",
"margin-top": "=if([$Projecttype]=='Innovation', '0', '-40px')"
},
"children": [
{
"elmType": "span",
"style": {
"font-size": "16px",
"padding-left": "15px"
},
"txtContent": " ",
"attributes": {
"iconName": "=if([$Status]=='Tender', 'AccountActivity', if([$StatusCode] > 1, 'StatusCircleCheckmark', 'CircleRing')",
"class": "='ms-fontColor-' + if([$Status] == 'Tender', 'orange', if([$StatusCode] > 0, 'green', 'neutralSecondaryAlt'))"
}
},
{
"elmType": "span",
"style": {
"font-size": "16px",
"margin-left": "-16px"
},
"txtContent": " ",
"attributes": {
"iconName": "=if([$Status]=='Tender', 'AccountActivity', 'CircleRing'",
"class": "='ms-fontColor-' + if([$Status] == 'Tender', 'orange', if([$StatusCode] > 0, 'green', 'neutralSecondaryAlt'))"
}
},
{
"elmType": "span",
"style": {
"font-size": "16px",
"padding-left": "9px"
},
"txtContent": "Tender",
"attributes": {
"class": "='ms-fontColor-' + if([$Status] == 'Tender', 'orange', if([$StatusCode] > 0, 'green', 'neutralSecondaryAlt'))"
}
}
]
},
{
"elmType": "div",
"children": [
{
"elmType": "span",
"style": {
"border-left-style": "solid",
"border-left-color": "='ms-borderColor-' + if([$Status] > 1 ,'green','neutralSecondaryAlt')",
"margin-left": "21px"
},
"attributes": {
"class": "='ms-fontColor-' + if([$StatusCode] > 1,'green','neutralSecondaryAlt')"
}
}
]
},
{
"elmType": "div",
"children": [
{
"elmType": "span",
"style": {
"font-size": "16px",
"padding-left": "15px"
},
"txtContent": " ",
"attributes": {
"iconName": "=if([$Status]=='Planning', 'PenWorkspace', if([$StatusCode] > 2, 'StatusCircleCheckmark', 'CircleRing')",
"class": "='ms-fontColor-' + if([$Status] == 'Planning', 'red', if([$StatusCode] > 2, 'green', 'neutralSecondaryAlt'))"
}
},
{
"elmType": "span",
"style": {
"font-size": "16px",
"margin-left": "-16px"
},
"txtContent": " ",
"attributes": {
"iconName": "=if([$Status]=='Planning', 'PenWorkspace', 'CircleRing'",
"class": "='ms-fontColor-' + if([$Status] == 'Planning', 'red', if([$StatusCode] > 2, 'green', 'neutralSecondaryAlt'))"
}
},
{
"elmType": "span",
"style": {
"font-size": "16px",
"padding-left": "9px"
},
"txtContent": "Planning",
"attributes": {
"class": "='ms-fontColor-' + if([$Status] == 'Planning', 'red', if([$StatusCode] > 2, 'green', 'neutralSecondaryAlt'))"
}
}
]
},
{
"elmType": "div",
"children": [
{
"elmType": "span",
"style": {
"border-left-style": "solid",
"border-left-color": "='ms-borderColor-' + if([$Status] > 2 ,'green','neutralSecondaryAlt')",
"margin-left": "21px"
},
"attributes": {
"class": "='ms-fontColor-' + if([$StatusCode] > 2,'green','neutralSecondaryAlt')"
}
}
]
},
{
"elmType": "div",
"children": [
{
"elmType": "span",
"style": {
"font-size": "16px",
"padding-left": "15px"
},
"txtContent": " ",
"attributes": {
"iconName": "=if([$Status]=='In progress', 'Workflow', if([$StatusCode] > 3, 'StatusCircleCheckmark', 'CircleRing')",
"class": "='ms-fontColor-' + if([$Status] == 'In progress', 'yellow', if([$StatusCode] > 3, 'green', 'neutralSecondaryAlt'))"
}
},
{
"elmType": "span",
"style": {
"font-size": "16px",
"margin-left": "-16px"
},
"txtContent": " ",
"attributes": {
"iconName": "=if([$Status]=='In progress', 'Workflow', 'CircleRing'",
"class": "='ms-fontColor-' + if([$Status] == 'In progress', 'yellow', if([$StatusCode] > 3, 'green', 'neutralSecondaryAlt'))"
}
},
{
"elmType": "span",
"style": {
"font-size": "16px",
"padding-left": "9px"
},
"txtContent": "In progress",
"attributes": {
"class": "='ms-fontColor-' + if([$Status] == 'In progress', 'yellow', if([$StatusCode] > 3, 'green', 'neutralSecondaryAlt'))"
}
}
]
},
{
"elmType": "div",
"children": [
{
"elmType": "span",
"style": {
"border-left-style": "solid",
"border-left-color": "='ms-borderColor-' + if([$Status] > 3 ,'green','neutralSecondaryAlt')",
"margin-left": "21px"
},
"attributes": {
"class": "='ms-fontColor-' + if([$StatusCode] > 3,'green','neutralSecondaryAlt')"
}
}
]
},
{
"elmType": "div",
"style": {
"visibility": "=if([$Projecttype]=='Innovation', 'visible', 'hidden')",
"margin-top": "=if([$Projecttype]=='Innovation', '0', '-40px')"
},
"children": [
{
"elmType": "span",
"style": {
"font-size": "16px",
"padding-left": "15px"
},
"txtContent": " ",
"attributes": {
"iconName": "=if([$Status]=='Monitoring', 'Flow', if([$StatusCode] > 4, 'StatusCircleCheckmark', 'CircleRing')",
"class": "='ms-fontColor-' + if([$Status] == 'Monitoring', 'green', if([$StatusCode] > 4, 'green', 'neutralSecondaryAlt'))"
}
},
{
"elmType": "span",
"style": {
"font-size": "16px",
"margin-left": "-16px"
},
"txtContent": " ",
"attributes": {
"iconName": "=if([$Status]=='Monitoring', 'Flow', 'CircleRing'",
"class": "='ms-fontColor-' + if([$Status] == 'Monitoring', 'green', if([$StatusCode] > 4, 'green', 'neutralSecondaryAlt'))"
}
},
{
"elmType": "span",
"style": {
"font-size": "16px",
"padding-left": "9px"
},
"txtContent": "Monitoring",
"attributes": {
"class": "='ms-fontColor-' + if([$Status] == 'Monitoring', 'green', if([$StatusCode] > 4, 'green', 'neutralSecondaryAlt'))"
}
}
]
},
{
"elmType": "div",
"children": [
{
"elmType": "span",
"style": {
"border-left-style": "solid",
"border-left-color": "='ms-borderColor-' + if([$Status] > 4 ,'green','neutralSecondaryAlt')",
"margin-left": "21px"
},
"attributes": {
"class": "='ms-fontColor-' + if([$StatusCode] > 4,'green','neutralSecondaryAlt')"
}
}
]
},
{
"elmType": "div",
"children": [
{
"elmType": "span",
"style": {
"font-size": "16px",
"padding-left": "15px"
},
"txtContent": " ",
"attributes": {
"iconName": "=if([$Status]=='Closure', 'Accept', if([$StatusCode] > 5, 'StatusCircleCheckmark', 'CircleRing')",
"class": "='ms-fontColor-' + if([$Status] == 'Closure', 'blue', if([$StatusCode] > 5, 'green', 'neutralSecondaryAlt'))"
}
},
{
"elmType": "span",
"style": {
"font-size": "16px",
"margin-left": "-16px"
},
"txtContent": " ",
"attributes": {
"iconName": "=if([$Status]=='Closure', 'Accept', 'CircleRing'",
"class": "='ms-fontColor-' + if([$Status] == 'Closure', 'blue', if([$StatusCode] > 5, 'green', 'neutralSecondaryAlt'))"
}
},
{
"elmType": "span",
"style": {
"font-size": "16px",
"padding-left": "9px"
},
"txtContent": "Closure",
"attributes": {
"class": "='ms-fontColor-' + if([$Status] == 'Closure', 'blue', if([$StatusCode] > 5, 'green', 'neutralSecondaryAlt'))"
}
}
]
},
{
"elmType": "div",
"children": [
{
"elmType": "span",
"style": {
"border-left-style": "solid",
"border-left-color": "='ms-borderColor-' + if([$Status] > 5 ,'green','neutralSecondaryAlt')",
"margin-left": "21px"
},
"attributes": {
"class": "='ms-fontColor-' + if([$StatusCode] > 5,'green','neutralSecondaryAlt')"
}
}
]
},
{
"elmType": "div",
"children": [
{
"elmType": "span",
"style": {
"font-size": "16px",
"padding-left": "15px"
},
"txtContent": " ",
"attributes": {
"iconName": "=if([$Status]=='Archived', 'CircleStopSolid', if([$StatusCode] > 6, 'StatusCircleCheckmark', 'CircleRing')",
"class": "='ms-fontColor-' + if([$Status] == 'Archived', 'grey', if([$StatusCode] > 6, 'green', 'neutralSecondaryAlt'))"
}
},
{
"elmType": "span",
"style": {
"font-size": "16px",
"margin-left": "-16px"
},
"txtContent": " ",
"attributes": {
"iconName": "=if([$Status]=='Archived', 'CircleStopSolid', 'CircleRing'",
"class": "='ms-fontColor-' + if([$Status] == 'Archived', 'grey', if([$StatusCode] > 6, 'green', 'neutralSecondaryAlt'))"
}
},
{
"elmType": "span",
"style": {
"font-size": "16px",
"padding-left": "9px"
},
"txtContent": "Archived",
"attributes": {
"class": "='ms-fontColor-' + if([$Status] == 'Archived', 'grey', if([$StatusCode] > 6, 'green', 'neutralSecondaryAlt'))"
}
}
]
}
]
}
]
}
]
},
"openOnEvent": "hover",
"directionalHint": "bottomCenter",
"isBeakVisible": true
}
}
End result
The end result
Helpfull tooling
With knowledge of HTML, CSS and your own creativity, you can make column formatting completely your own. To make your life easier two more tools to help with this:
- The HTML formatter: https://pnp.github.io/List-Formatting/tools/html-formatter-generator/
This allows you to have the JSON generated by setting up HTML and CSS. You still have to add further intelligence of formulas yourself, but creating a layout setup becomes much easier!
- SP formatter: Google Chrome extension
When working with column formatting you often click on Preview to see the result. This extension allows you to get a live preview of the formatting, so you can get your final result faster. In addition, you can activate intellisense, you get to see JSON validation with error messages and you can use various keyboard shortcuts. For detailed description of these read the following blog .
